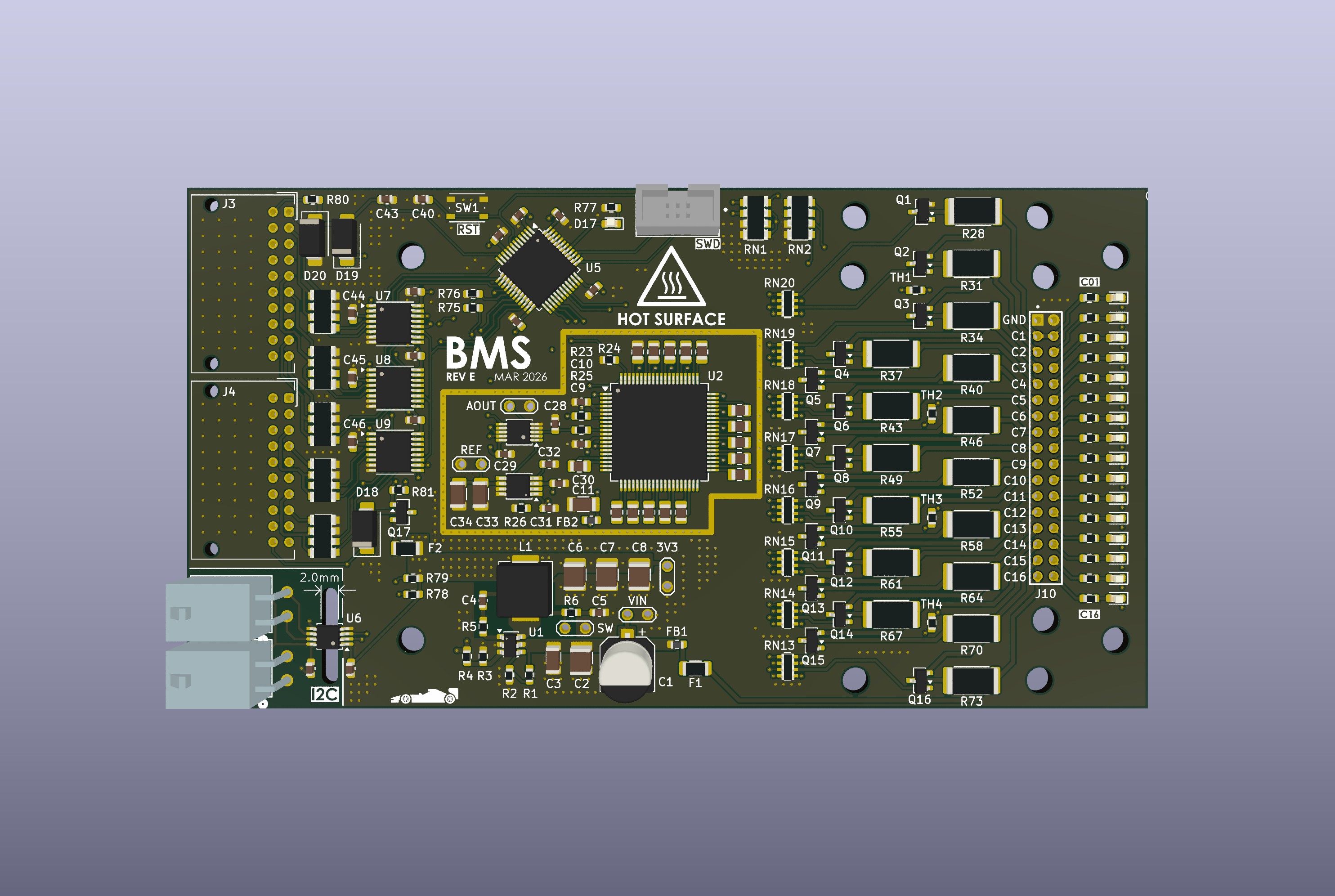

The distributed BMS segment board connects to a series string of 12 cells and can be queried over isolated I2C to sample cell voltages and temperatures.
- Isolated I2C Communication to the Master Board
- Accurate Voltage Measurement Using the MAX14920 Analog Frontend
- Passive Cell Balancing
- Up to 23 Connected Thermistors
- Three onboard thermistors around the cell balancers
- Twenty external thermistors across two JST PUD connectors
A recursive clone must be used to download the kicad-library repository:
git clone --recursive https://github.com/york-fs/bms-segment.git
