feat(hub): see what each agent session read, not just what it changed (BEA-98)

[ssowonny]

TL;DR

• A History run card now shows what the agent session read, not just what it changed — including the files it read and never touched.
• The join is a new Op.Session that only the sync hook can write. --note is user-settable, so joining on the note string would let anyone hang their reads off a teammate's card.
• Session rows live in their own read_sessions repo, not in the read_stats key — that table is loaded whole at boot and full-scanned on every heat request, so session cardinality there would slow the Dashboard for projects that never ran an agent. No PK migration, no change to resident row count.
• Known gap by design: reads are only recorded for files the project still has, so a file a run read and then deleted shows a change with no read. The card says so on screen.
• Two sec13fe.spec.ts e2e tests fail — they also fail on origin/main (verified in a clean worktree at 27cc558). Not from this branch.

---

Before / after

Before	After

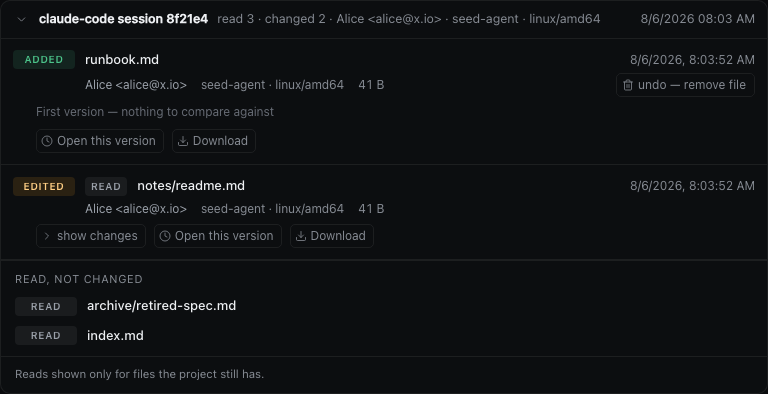

Same seeded run. The header goes from 2 files to read 3 · changed 2; the file the run read and rewrote gets a READ marker on its own row; the two it only read get their own list; the footer states the deleted-file rule.

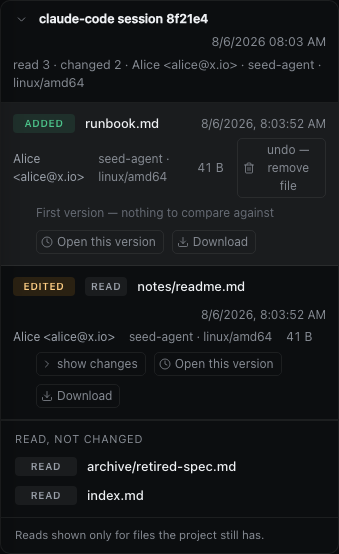

Mobile (375px) — no horizontal overflow

Why the note could not be the join key

flowchart LR
    Hook["bdrive sync --hook<br/>(the agent hook)"]
    Note["Op.Note<br/><i>any member can set it</i>"]
    Sess["Op.Session<br/><i>hook-only, no CLI flag reaches it</i>"]
    Card["History run card"]
    Hook --> Note
    Hook --> Sess
    Note -- "displayed" --> Card
    Sess -- "joined on" --> Card
    classDef bad fill:#ef444422,stroke:#ef4444,stroke-width:2px
    classDef good fill:#22c55e22,stroke:#22c55e,stroke-width:2px
    class Note bad
    class Sess good

Loading

bdrive sync --note "claude-code session <someone-else's-id>" is a thing any member with write access can run. Grouping on that string merged their ops into the victim's card; joining reads on it would have attached their reads too. Op.Session is the un-forgeable half — additive JSONL, and like Mtime never an input to Less or Replay, so replay determinism is untouched and pre-existing ops carry "" and still group by (note, device) exactly as before.

The read half has the same hole one step on: POST /reads takes the session id from the client. Every session row is pinned to the ownsDevice-validated device, and GET /heat requires ?session= and ?device= together — so a forged report can only ever be found under the forger's own device, which MayActAs guarantees is never someone else's.

The carry

hook → spool → hub → card, one string:

Hop	Change
hook	read-log parses session_id from the same stdin payload hooksync already reads, once per invocation
spool	store.ReadEvent.Session; PendingReads dedupes on (path, session), not path — two sessions on one device between syncs used to collapse into one event carrying whichever flushed last
wire	remote.ReadEvent.Session, copied into the outgoing batch by the syncer
hub	handleReadReport records a SessionRead{Project, Session, Device, Path, Last} through the new repo, device pinned; journal.SafePath, ownsDevice and the snapshot-existence check all still apply
card	GET /heat?session=&device= → {"paths": [...]}; RunGroup marks rows and lists the read-only ones

Storage shape — the one deliberate departure from the plan's spec

The specification put the session in the read_stats primary key. The Implementation Plan overrode that with a separate read_sessions repo, and this PR follows the plan. The reason is ReadLedger.Heat: it iterates the entire in-memory bucket map on every heat request, for every project on the hub, under one mutex. So:

• read_stats and its PK are untouched — no SQLite table rebuild, no Postgres migration, no zero-row-loss proof needed because there is nothing to migrate.
• Resident bucket count is unchanged from today; session rows never enter byKey.
• ?by=device output is byte-identical (AgentHeat reads byKey).
• Session rows get their own, much shorter retention — reads.session_retention_days, default 30 — and past it they are deleted, not folded. No heat total was ever derived from them, so nothing is lost from any count.

The plan's own note applies: this reverses cleanly. Nothing about Op.Session, the wire format, or the API shape depends on which table the rows land in.

Privacy ruling

Written into internal/webapp/reads.go before anything serves it, as both the spec and the plan ask:

A session id appears only in History responses, on the op that carries it, and as a ?session= filter input. It is never enumerated — no "list sessions" response, no session column in /heat output, nothing new in ?by=device.

Sound because the id is already visible to every project member inside Op.Note today, so serving it as its own field discloses nothing new — while refusing to enumerate keeps /heat identity-free exactly as the package comment documents. TestSessionIdsAreNeverEnumerated pins it.

Architecture changes

architecture/cli-sync.md

journal.Op gains Session (hook-set, display/join-only, never an input to Less/Replay — the same standing Mtime holds); syncer.Session gains SessionID, the field the hook sets and --note cannot reach; store.LogRead takes the session and PendingReads dedupes on (path, session) instead of path; both store.ReadEvent and remote.ReadEvent carry it.

✅ added · ❌ removed (strikethrough) · unmarked = unchanged

flowchart TB
    Sess["<div style='text-align:left'><b>syncer.Session</b><br/>+Folder, MountID, Store, Device, Account<br/>+Backend remote.Backend<br/>+Note string<br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +SessionID string</span><br/>+Prune bool<br/>+Cycle(ctx) Result</div>"]
    Store["<div style='text-align:left'><b>store.Store</b><br/>+PutBlob / OpenBlob / HasBlob<br/>+AppendOps / DeviceOps / AllOps<br/>+SaveNote / LoadNote<br/><span style='background:#ef444455;padding:0 4px;border-radius:3px'>❌ <s>+LogRead(rel)</s></span><br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +LogRead(rel, session)</span><br/><span style='background:#ef444455;padding:0 4px;border-radius:3px'>❌ <s>+PendingReads dedup on path</s></span><br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +PendingReads dedup on path+session</span></div>"]
    Op["<div style='text-align:left'><b>journal.Op</b><br/>+Seq +Lamport +Time +Device<br/>+Author +User +UserName<br/>+Kind +Path +Blob +Size +Mode<br/>+Note (user-settable)<br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +Session (hook-set only)</span><br/>+Mtime</div>"]
    RE["<div style='text-align:left'><b>remote.ReadEvent</b><br/>+Path<br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +Session</span><br/>+Time</div>"]
    SE["<div style='text-align:left'><b>store.ReadEvent</b><br/>+Path<br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +Session</span><br/>+Time</div>"]
    NoteOp["Session is display/join-only:<br/>never an input to Less or Replay,<br/>so replay stays deterministic and<br/>older ops simply carry the empty string.<br/>Note is forgeable, a session id is not."]
    Sess -- "scan stamps every op it commits" --> Op
    Sess --> Store
    Store -- "spools" --> SE
    Sess -- "<span style='background:#22c55e55;padding:0 5px;border-radius:3px'>✅ copies Session into the batch</span>" --> RE
    Op -.- NoteOp
    classDef added fill:#22c55e22,stroke:#22c55e,stroke-width:2px
    classDef removed fill:#ef444422,stroke:#ef4444,stroke-width:2px,stroke-dasharray:4 3
    classDef noteBox fill:#88888822,stroke:#888888,stroke-dasharray:2 2
    class NoteOp noteBox
    linkStyle 3 stroke:#22c55e,stroke-width:2px

Loading

architecture/webapp-server.md

MetaStore gains a seventh repo, SessionReadRepo (read_sessions in SQL, sessions.json in the file backend), and ReadLedger gains the session half — RecordSession / SessionPaths / WithSessions over a new SessionRead row, plus its own shorter retention. ReadStat and ReadRepo are unchanged.

✅ added · ❌ removed (strikethrough) · unmarked = unchanged

flowchart TB
    MS["<div style='text-align:left'><b>MetaStore</b><br/>+Accounts() +Projects() +Orgs()<br/>+Shares() +Devices()<br/>+Reads() ReadRepo<br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +SessionReads() SessionReadRepo</span><br/>+Close()</div>"]
    RR["<div style='text-align:left'><b>ReadRepo</b><br/>+Load() +PutBatch +DeleteBatch</div>"]
    SRR["<div style='text-align:left'><b>SessionReadRepo</b><br/>+PutBatch(reads)<br/>+ListBySession(project, session, device)<br/>+PruneBefore(t)</div>"]
    RL["<div style='text-align:left'><b>ReadLedger</b><br/>-repo ReadRepo<br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ -sessions SessionReadRepo</span><br/><span style='background:#ef444455;padding:0 4px;border-radius:3px'>❌ <s>-retention</s></span><br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ -retention, sessionRetention</span><br/><span style='background:#ef444455;padding:0 4px;border-radius:3px'>❌ <s>-byKey, dirty, seen</s></span><br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ -byKey, dirty, seen, pendingSess</span><br/>+Record(...)<br/>+Heat(project, prefix, days)<br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +RecordSession(project, session, device, path)</span><br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +SessionPaths(project, session, device)</span><br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +WithSessions(repo, days)</span></div>"]
    RS["<div style='text-align:left'><b>ReadStat</b><br/>+Project +Path +Day +Kind +Actor<br/>+Count +Last<br/><i>key and table unchanged</i></div>"]
    SR["<div style='text-align:left'><b>SessionRead</b><br/>+Project +Session +Device +Path +Last</div>"]
    Why["Why its own repo, not a read_stats column:<br/>byKey is loaded whole at boot and<br/>full-scanned by Heat on every request, hub-wide.<br/>Session cardinality there would slow the<br/>Dashboard for projects that never ran an agent.<br/>So: no PK migration, no change to resident rows,<br/>?by=device byte-identical."]
    Pin["Device is always the ownsDevice-validated id,<br/>never a client field — and the query needs<br/>?session= AND ?device= together.<br/>A forged report can only ever be found<br/>under the forger's own device."]
    MS --> RR
    MS -- "<span style='background:#22c55e55;padding:0 5px;border-radius:3px'>✅ new repo</span>" --> SRR
    RL --> RR
    RL -- "<span style='background:#22c55e55;padding:0 5px;border-radius:3px'>✅</span>" --> SRR
    RL -.-> RS
    RL -. "<span style='background:#22c55e55;padding:0 5px;border-radius:3px'>✅</span>" .-> SR
    SR -.- Why
    SR -.- Pin
    classDef added fill:#22c55e22,stroke:#22c55e,stroke-width:2px
    classDef removed fill:#ef444422,stroke:#ef4444,stroke-width:2px,stroke-dasharray:4 3
    classDef noteBox fill:#88888822,stroke:#888888,stroke-dasharray:2 2
    class SRR added
    class SR added
    class Why noteBox
    class Pin noteBox
    linkStyle 1 stroke:#22c55e,stroke-width:2px
    linkStyle 3 stroke:#22c55e,stroke-width:2px
    linkStyle 5 stroke:#22c55e,stroke-width:2px

Loading

What was run

Check	Result
go build ./..., go vet ./...	clean
go test ./...	pass
db_conformance_test.go	pass on file, sqlite and postgres (real PG 16 via BDRIVE_TEST_POSTGRES)
npm test (frontend units)	62 pass — incl. 5 new runs.ts grouping cases
npm run e2e	153 pass, 1 skipped, 2 fail — both pre-existing on origin/main, see below
frontend/check-dist.sh	internal/webapp/static is fresh
Mermaid blocks in both diagram files	parse-checked
UI eval	driven in the real hub at 1280px and 375px; no horizontal overflow, read-only rows navigate

The two e2e failures are sec13fe.spec.ts › VolumeApp (single-volume mode). I checked out origin/main (27cc558) into a separate worktree and ran that spec there: the same two fail, identically. Not from this branch, and not fixed here.

New tests worth naming:

• TestSyncNoteCannotForgeASession — landmine 1, explicitly: bdrive sync --note "claude-code session <someone-else's-id>" produces an op with an empty Session.
• TestSessionReadsCannotBePaintedOntoAnotherDevicesRun — its read-half twin, at the hub.
• TestSessionCarriesThroughTwoDevices — the multi-device syncer test CLAUDE.md requires for a sync change: session on the ops and on the reported reads, empty on the peer that has none, convergence intact.
• TestSessionIdsAreNeverEnumerated — the privacy ruling.
• internal/webapp/frontend/e2e/session-run.spec.ts — the card itself against the seeded hub.

One thing still open

The plan set session_retention_days to 30 rather than the spec's 14, on the grounds that with the rows outside byKey the cost of keeping them is disk, not resident memory. That reasoning holds, but the number itself still has no measurement behind it — this PR does not produce one, because there is now no resident-row bound to measure. If a busy hub's read_sessions table turns out to be the thing that grows, the knob is already there.

Build session

cd $(git worktree list | grep bea-98 | awk '{print $1}') && claude --resume bcd0a66d-555b-4419-9fc5-a3ac1cf13293

(only works on the machine this branch was built on)
