"Cypherpunks write code. We know that someone has to write software to defend privacy,
and since we can't get privacy unless we all do, we're going to write it."
A Cypherpunk's Manifesto - Eric Hughes - 9 March 1993
...and Cypherpunks do build their own Bitcoin Hardware Wallets.

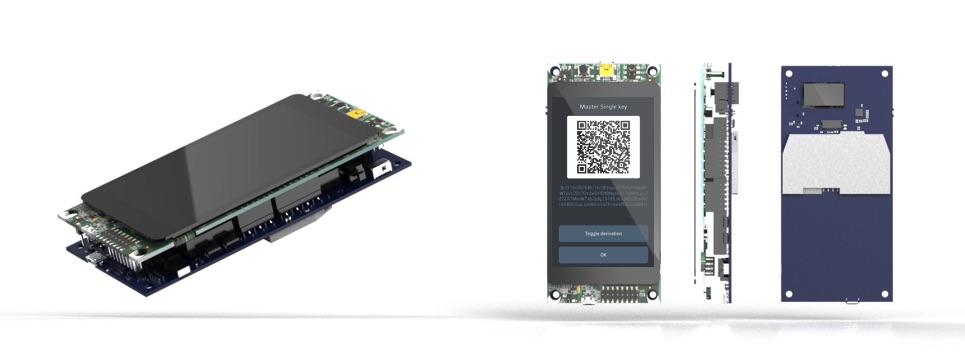

The idea of the project is to provide a playground for everyone to play with a software which can potentially run on the Specter Hardware, a F469-Discovery board from STMicroelectronics.
git clone --recurse-submodules https://github.com/k9ert/specter-playground.git
cd specter-playground
# install nix + direnv, then:
direnv allow
make simulate # build and run the MockUI simulator
If you cloned without --recurse-submodules, run git submodule update --init --recursive.
Unit tests (make test runs the i18n build first, which generates translation_keys.py):
python3 -m venv .venv && .venv/bin/pip install -r requirements.txt
make test
Simulator and hardware control for development and tests lives in the devtools/ submodule; see the specter-devtools README for its setup and commands. make simulate-automation starts the simulator with its control server.
Different UI scenarios can be tested using the SCRIPT parameter:
# Default - runs the MockUI (scenarios/mockui_fw/main.py)
nix develop -c make simulate
# Run address_navigator scenario
nix develop -c make simulate SCRIPT=address_navigator.py
# Run udisplay_demo scenario
nix develop -c make simulate SCRIPT=udisplay_demo.py
MockUI's start state can come from a preset: with MOCKUI_PRESET=<name>, make copies scenarios/mockui_fw/presets/<name>.json to /flash/presets/mockui.json. The preset sets DeviceState and UIState attributes and lists seeds and wallets. Without MOCKUI_PRESET there is no preset and MockUI starts from the defaults, as in a release build. make simulate and make simulate-automation use dev (locked with PIN 21, test seeds and wallets, every peripheral present). Add your own preset rather than editing main.py.
# Simulator without a preset
nix develop -c make simulate MOCKUI_PRESET=
# Board firmware with the dev preset
nix develop -c make mockui MOCKUI_PRESET=dev
