Amplify Folder Documentation

Hello it's burton again I will be explaining what exactly is in the amplify folder

Amplify is an AWS service that we use to host our backend, which also handles our CI/CD Pipeline

AWS Environment Setup

Ask your tech lead to:

  1. Create you an IAM account with sufficient permissions
  2. Create a secret access key so you have access to the CLI
  3. Help you configure your AWS profile

To configure AWS locally, run these specific commands after these 3 steps have been completed:

aws configure

Then, four options should have appeared and you should have filled them out

asked for access key id
asked for secret access id secret whatever secreter one
asked for region
asked for json format or whatever, can leave this one empty

You can check to see if this worked by running:

aws sts get-caller-identity

The output should be something like:

{
  "UserId": "SDJHFHSDJLFHJKLSEDHTRJKLS",
  "Account": "34523452345",
  "Arn": "arn:aws:iam::34523452345:user/{whatever your lead named your IAM username whatever}"
}

What AWS Services do we use?

As of when this was last edited, these are the AWS Services that we use:

  • IAM (used for role management - to allow certain team members to access certain resources)
  • Secrets manager (to retrieve and store secrets safely without them getting leaked)
  • CloudFormation (sort of, we do have logs for certain services)
  • Route 53 (managing our DNS records)
  • Elastic Container Registry (ECR, used for storing our docker images to be later pulled into ECS)
  • ECS (to deploy our EC2 containers)
  • CodePipeline (CodeCommit, CodeBuild, and CodeDeploy are a part of this and are more in depth explained here)

Our CI/CD Pipeline

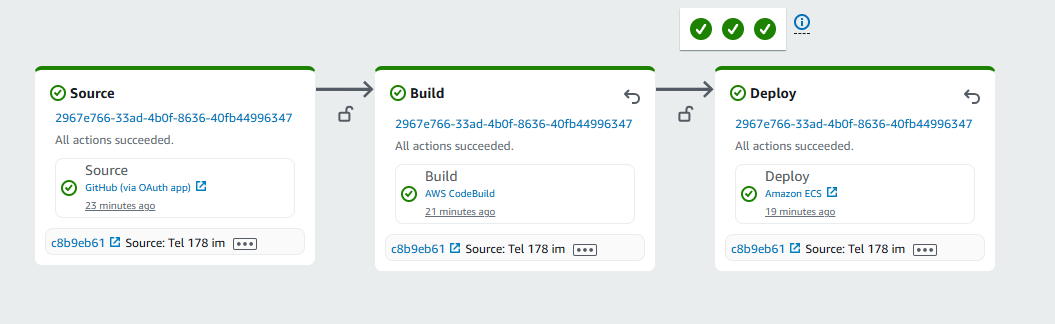

This is kind of confusing but not really. Below is an image of the most basic of what our pipeline looks like. Basically, whenever a commit is merged into main, and passes all the github action tests and checks, CodeCommit will recognize this and notify CodeBuild to start a build to build our new latest image based on our Dockerfile.

aws pic

If this image is built successfully, an imagedefinitions.json() artifact will have been created and passed into the CodeDeploy task to deploy our backend on ECS using EC2 instances.

We followed a tutorial for this. If you are ever confused about configuring this, please refer to this documentation.

Connecting through the instance through SSM

You need this IAM Role to be able to connect through SSM

AmazonEC2RoleforSSM
